Learn the basics: Build a diagram editor

Read as Markdown

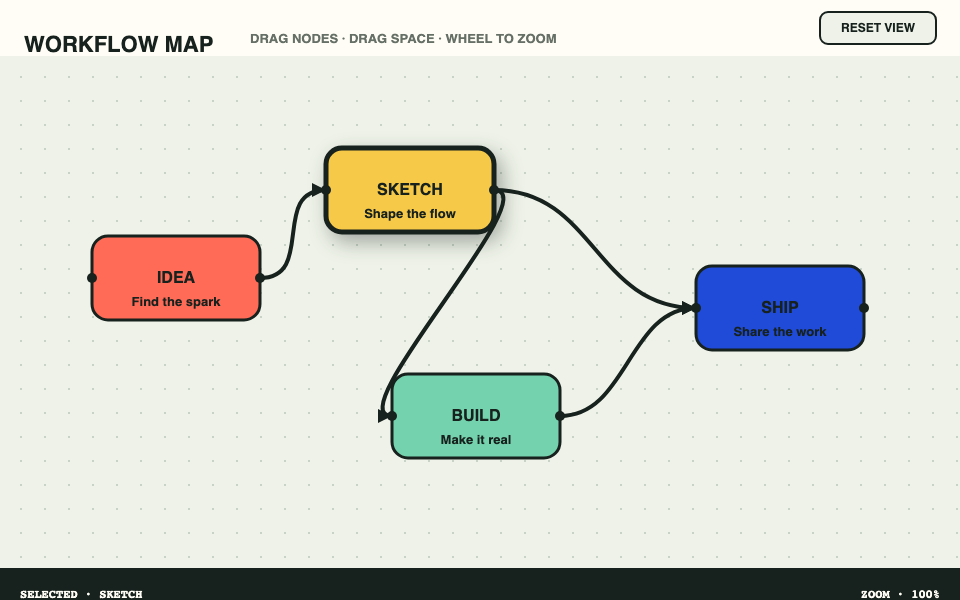

See what you will build

Build a small but real Canvas editor, one visible capability at a time. Every chapter is complete, editable, resettable, and independently runnable.

Start building → · Open the finished editor

Before you start

The default path runs in the Studio, so Chapter 1 starts with a Canvas scene rather than local setup. When you move the result into a local project, follow Configure JSX. Author without JSX is a separate supported guide; this tutorial uses the automatic Pibbl JSX runtime.

Curriculum

1. Create the Canvas scene — mount Pibbl, draw the workspace, and understand the controller, scheduled rendering, and disposal.
2. Draw the first node — combine Rectangle and Text and introduce local style and coordinate geometry.
3. Connect two nodes — add a curved path, explain source paint order, and build a recognizable diagram.
4. Extract a reusable node component — introduce props, children, lists, fragments, and stable keys.
5. Build the editor chrome — add toolbar and status regions with Pibbl layout components and distinguish allocation from drawing geometry.
6. Select nodes with state — use useSignal, click targets, visible selection, and frame-coalesced updates.
7. Drag nodes safely — use pointer events, pointer capture, event coordinates, and immutable diagram state.
8. Pan and zoom the workspace — apply Group transforms and wheel/pointer input while keeping paint and targeting aligned.
9. Constrain the viewport — introduce Clip and Layer, explain their different roles, and preserve interaction order.
10. Polish selection with filters — add typed shadows or glow, explain filter boundaries and nesting, and handle browser capability requirements.
11. Add keyboard interaction — introduce focus management, directional navigation, activation, and Pibbl’s accessibility boundary.
12. Finish and harden the editor — cover stable values, refs and reactions, cleanup ownership, component identity, failure behavior, and practical production patterns.

How the course works

Every chapter owns a complete snapshot: edits, reset, sharing, and recovery are scoped to that chapter and do not cross into another one. The editor teaches moving nodes, not a general diagramming product: creation, deletion, persistence, and undo are not tutorial features.
